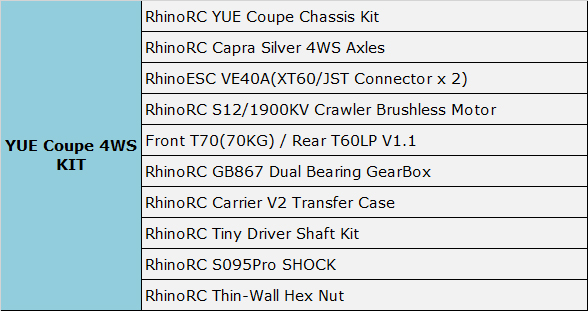

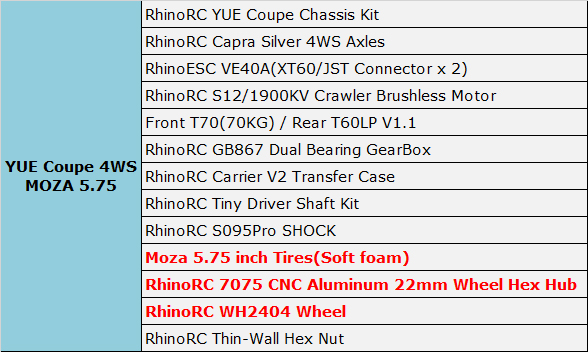

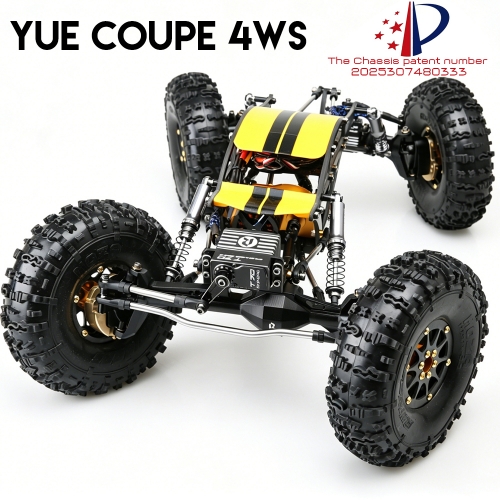

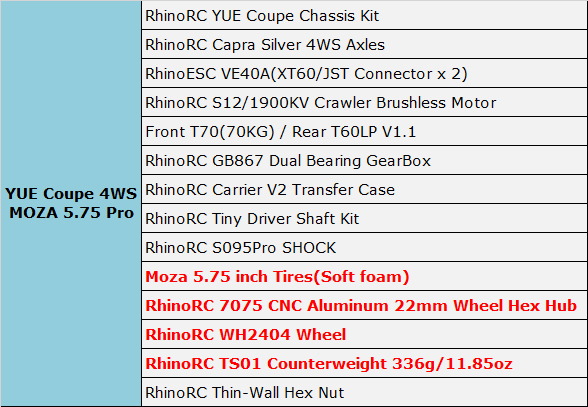

Rhino YUE Coupe 4WS - RTR-KIT Edition
30% OD

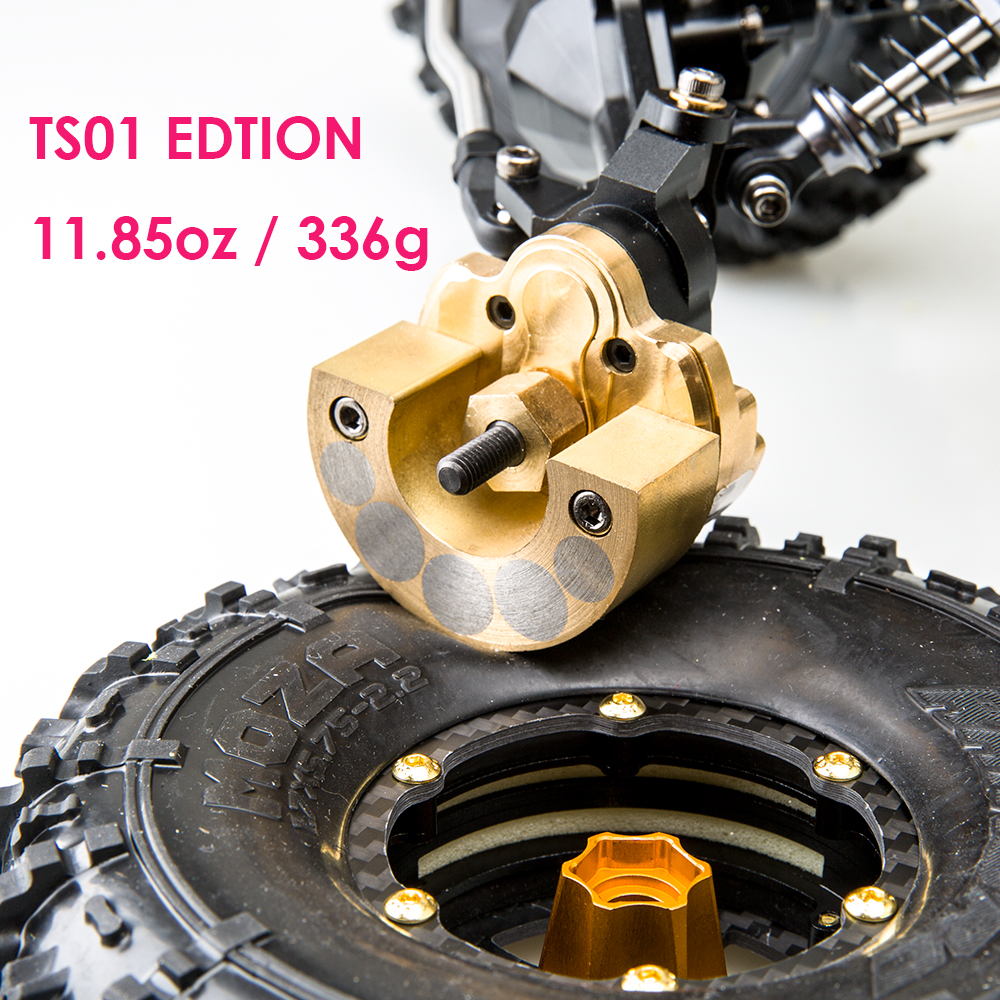

Front axles:
portal gear: 15-20T, diff gear: 8/24T
Rear axles:
portal gear: 12-23T, diff gear: 8/24T

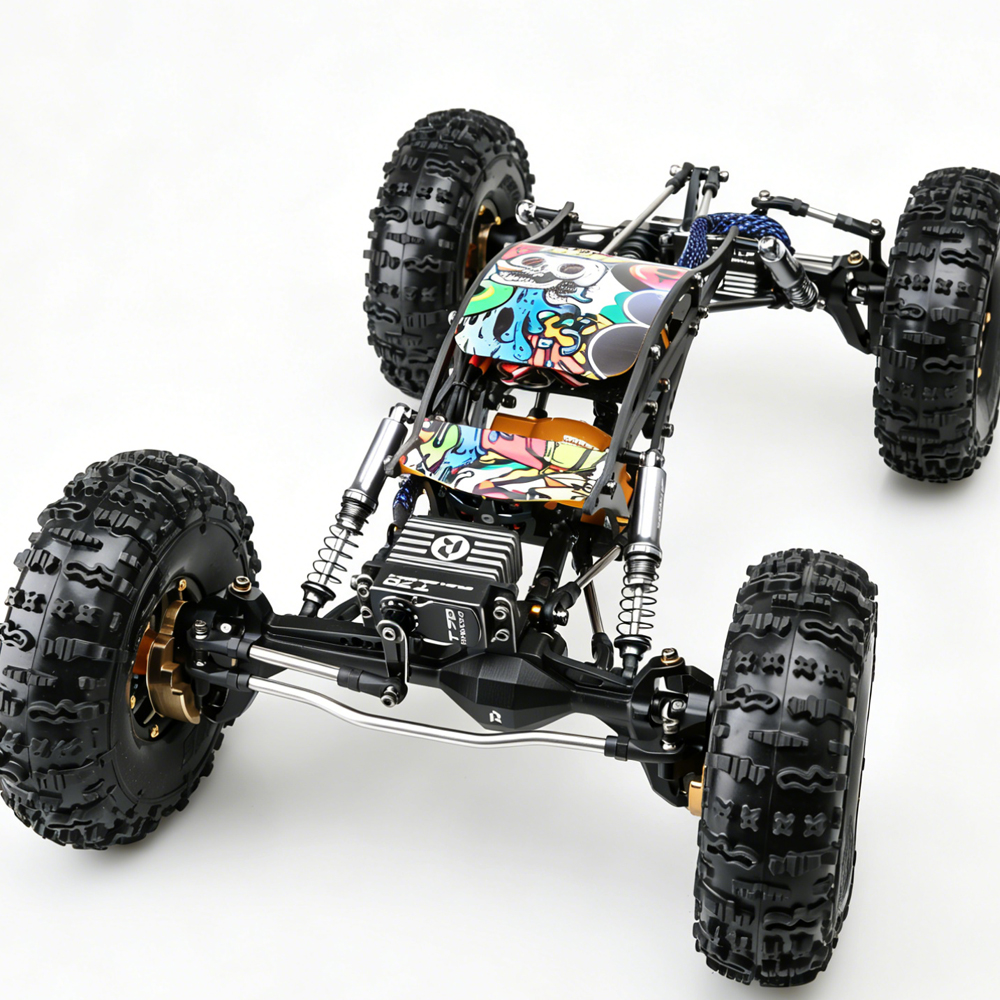

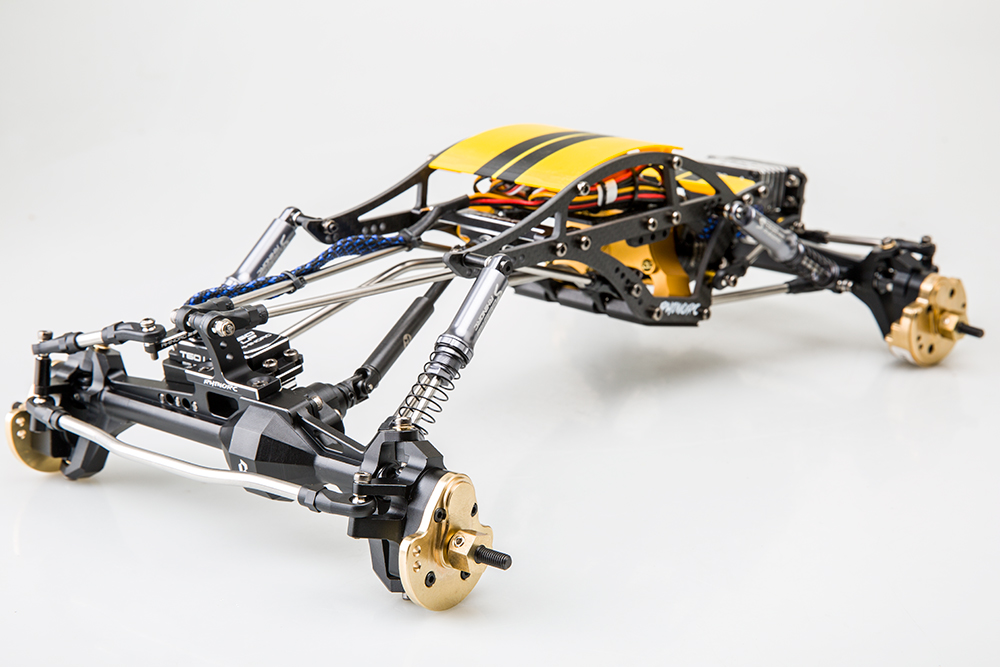

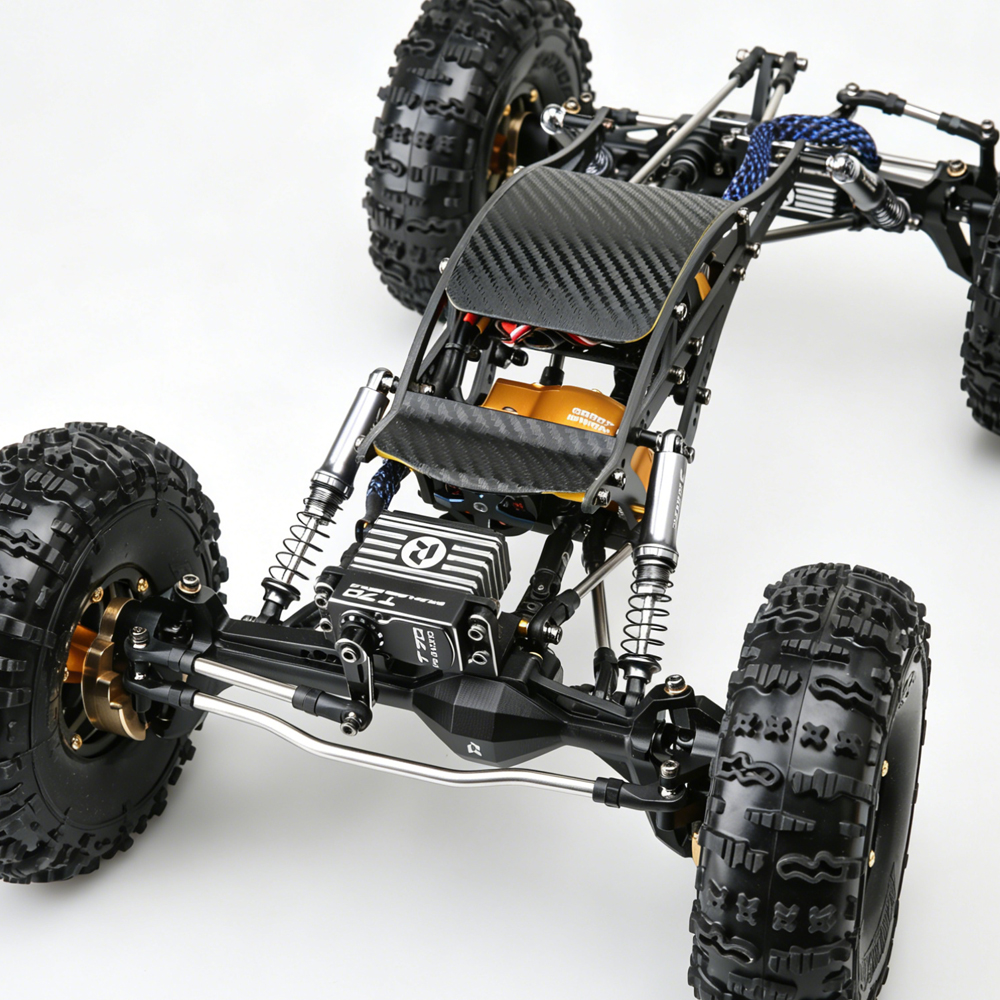

This is an all-new chassis jointly designed combining the W1 and Yue One. It features a 335mm wheelbase, a low-slung center of gravity, large-angle body flex, and is equipped with longer rear upper links.

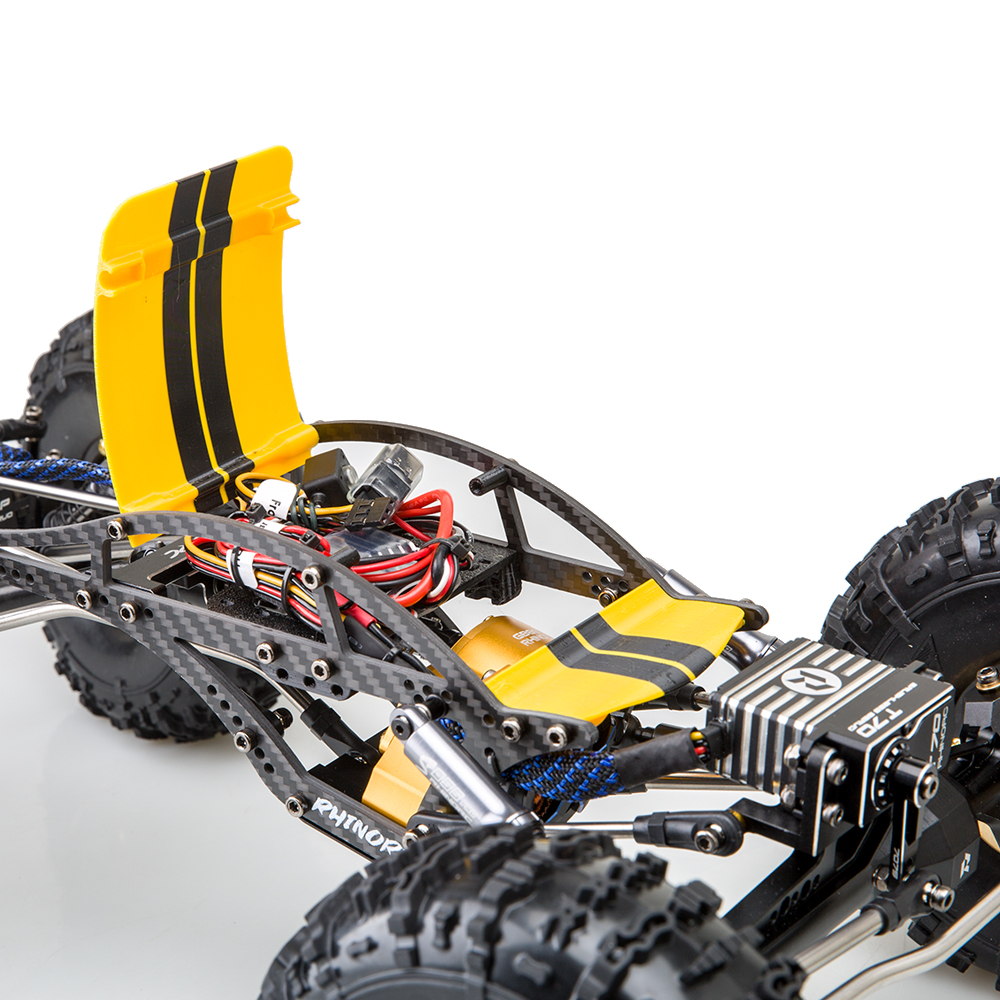

CNC Machined Aluminum Axles,billet aluminum case with hardened steel gears, full ball bearings,Suspension: 4 link front and rear, solid titanium links.Chassis: Carbon fiber.
Steel Internal Heavy Duty Gears,CVD and shafts made by 20CR and 40CR excellent quality alloy steel by QPQ Nitriding hardened.

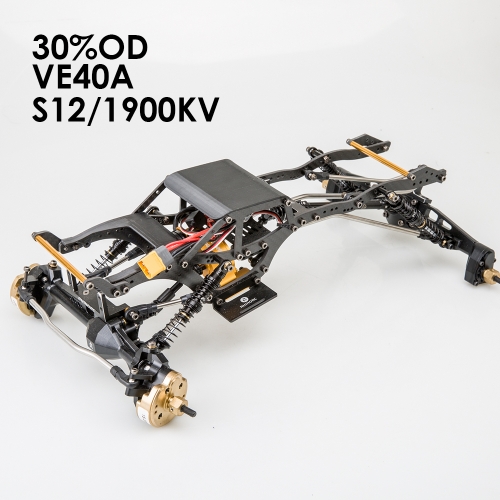

Power allocation with Rhino VE40A RM-S12 1900kv Brushless Outrunner Motor Combo. Shocks: Rhino S095Pro 95mm aluminum body-can be oil-filled.

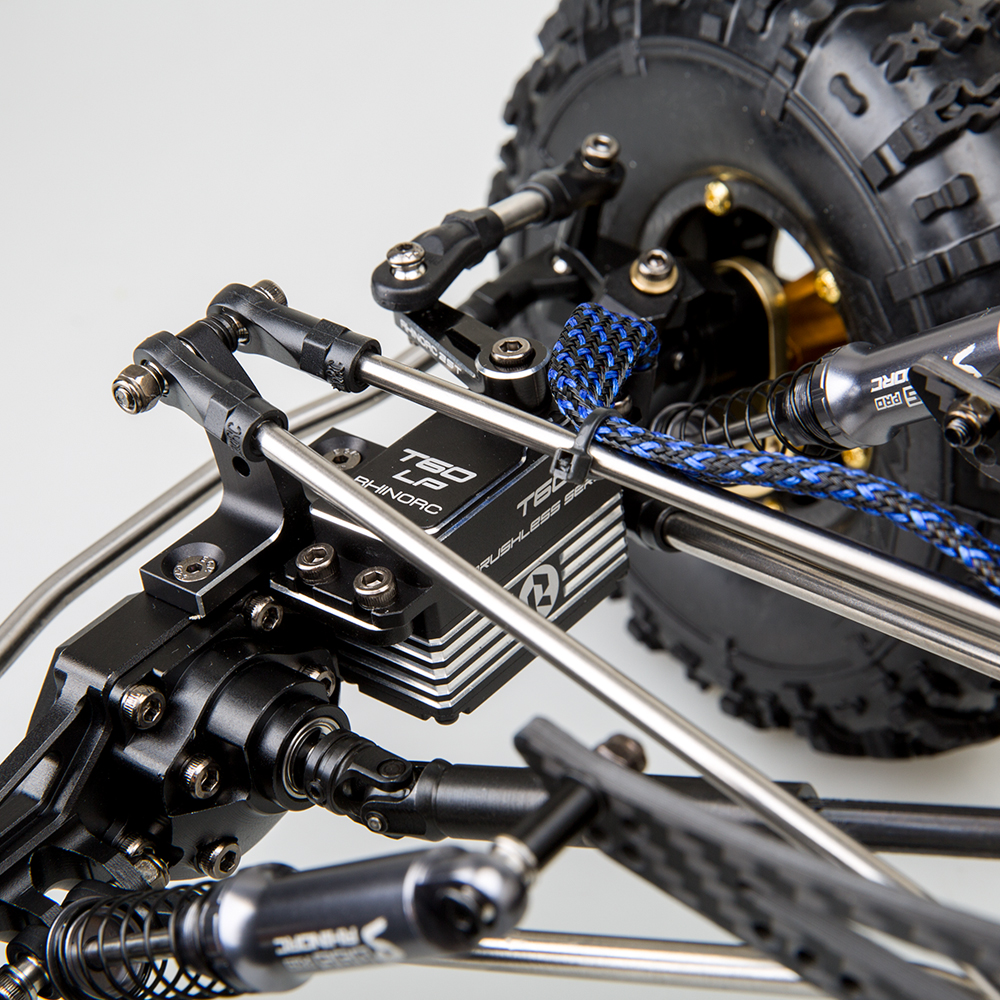

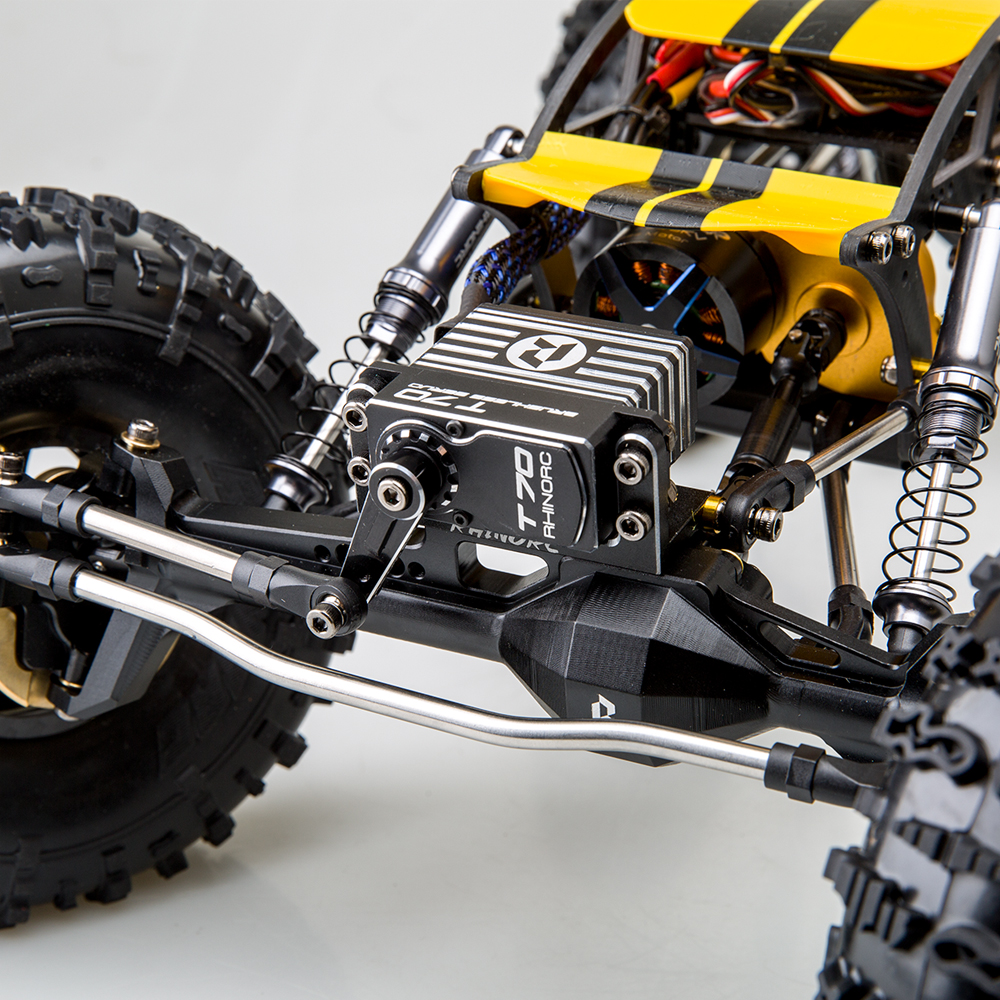

For Servo, we used RhinoRC T70(70KG) driect power servo (support 7-17V input) on Front Axles, RhinoRC T60LP70 V1.1(60KG) driect power servo (support 7-17V input) on Rear Axles, high performance digital servo, Extra strong patent steel gears.
