RhinoCrawler GB867 V2 Gearbox Transmission Gears Set 1/10 RC Crawler Car Low Center LCG Chassis MOA

GB867-V2
Price:
USD
$23.00
$24.99
(8% OFF)
    Please select the information you wantX
Quantity:
-
+
(596 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • YUE LCG-MOZA472S
  • YUE ONE-MOZA
  • YUE ONE-MOZA472
  • W1 KIT F
  • W1 KIT E
  • W1 KIT D
  • W1 KIT C
  • Description
  • Reviews(12)

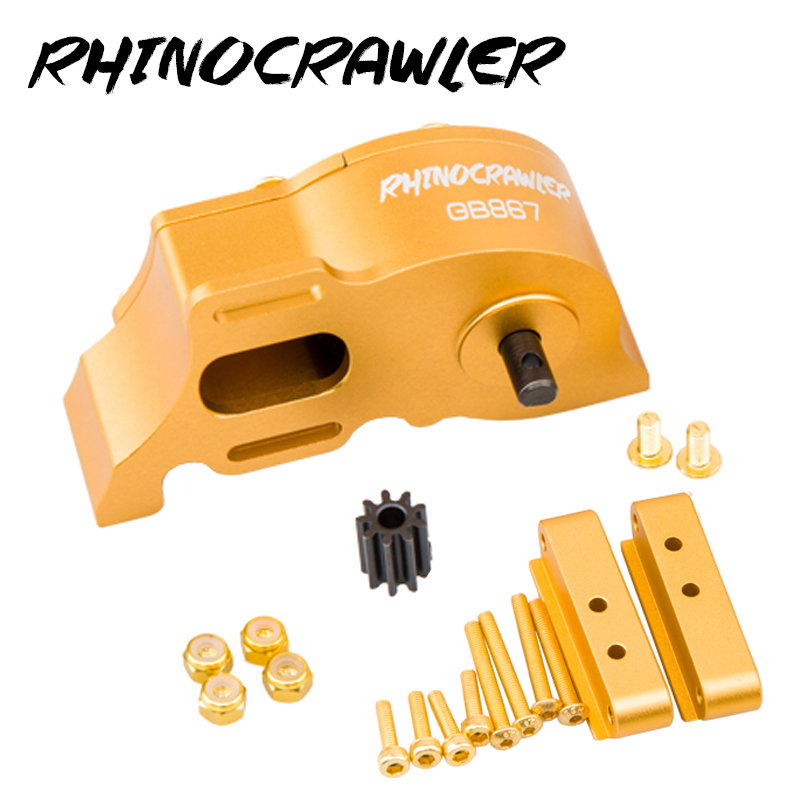

The Gearbox Transmission is very important for rc crawler car. Lightweight, High strength, High gears and the operation between them are very important.
The RhinoCrawler GB867 V2 designed base on V1,  it will bring you a different experience. Its weight is only 59g. The design of the opening of the motor fixed seat makes it to install. Integrated design ensures the concentricity of the operation. Motor gear and the third gears made by 1144 steel, the second gears made of 40CR, all gears has QPQ Nitride Hardened, the primary gear has been laser welded, so that the gear will not slip and the strength will be strengthened to cope with the large torque. How to solve the back-lash and noise? GB867 first designs the Integrated shell of the gearbox, then design the gears size set follow the hole location, then produces the gears, which can ensure perfect clearance and achieve the effect of silence, it's worth it for RC Crawler!

Features:
CNC Machined
Run is Quiet
Smooth and excellent!
Easy to install and durable
#6061 Aluminum Alloy Housing
#40CR on the second gears and QPQ Nitride Hardened
#1144 steel on motor gears & the third gear, and QPQ Nitride Hardened
JAPAN NSK Bearings
Fits LCG Chassis Rails
Compatibility: for 1/10 RC Crawler Car DIY

Specifications:
Color: Golden
Mount Width: 38mm (hole to hole)
Weight: 59.3g
Fits 3.17mm shaft diameter motors
Motor mount hole: 25mm*25mm
Gear Ratio: 1:8.67

Package included:
Gearbox Transmission * 1 Set
Skid Plate * 1 Set
Bottom Fixed Plate * 1 Pcs
M3*30mm Screw  * 4 Pcs
M3*25mm Screw  * 4 Pcs
M3*12mm Countersunk Screw  * 4 Pcs
M3*12mm Cap Screws   * 4 Pcs
M3 Lock Nut *  *4 Pcs
