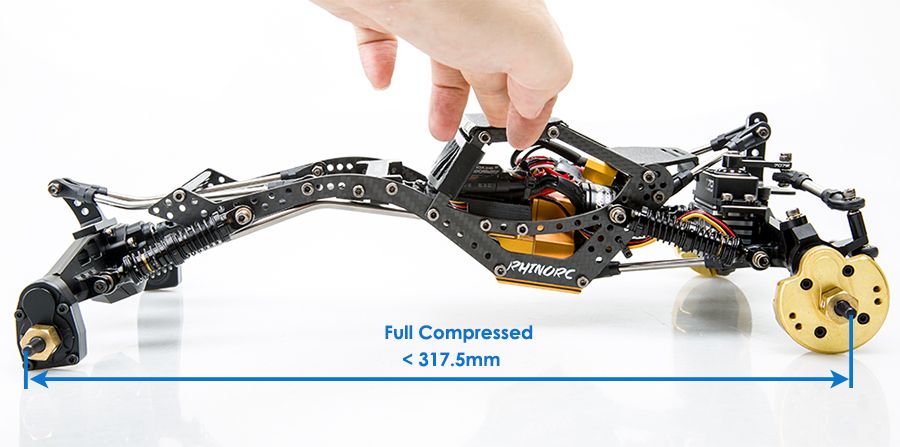

Thanks for your choosed RhinoRC W1 chassis, this assembled will base all RhinoRC products:
W1 Chassis: https://rctimer.com/w1-p1252.html
Axles: https://rctimer.com/rhino-capra-axles-p1175.html
ESC: https://rctimer.com/rhinoescplug-p1204.html
Motor: https://rctimer.com/rhinos12motor-p1121.html
Servo: https://rctimer.com/rhinot70-p1218.html
Shock: https://rctimer.com/s085-p1237.html
Shaft Driver: https://rctimer.com/55-135-p1223.html
Gear Box: https://rctimer.com/gb867-v2-p1157.html
Carrier: https://rctimer.com/rhinocarrier-p1215.html

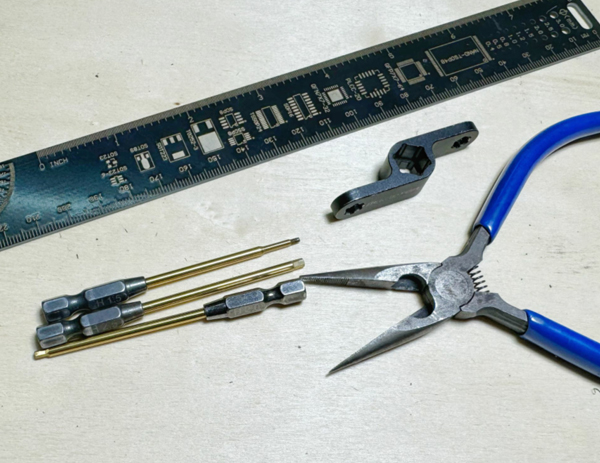

Tools required:
Hex Driver H1.5, H2.0, H2.5
https://rctimer.com/hexscrewdriver-p0655.html

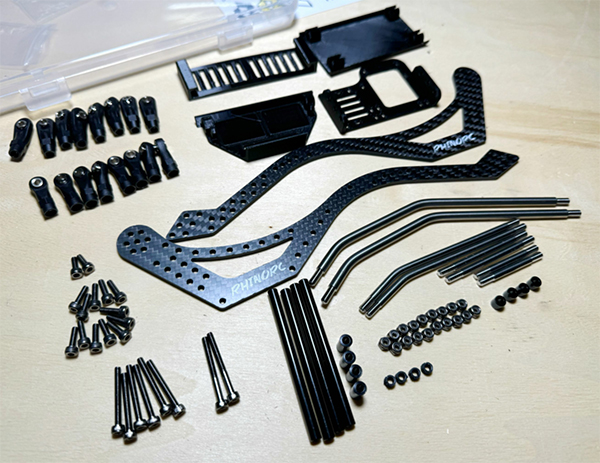

W1 Package list:

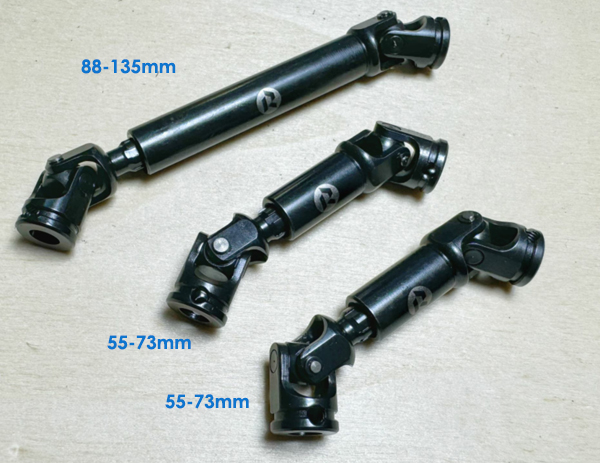

Shaft driver set:

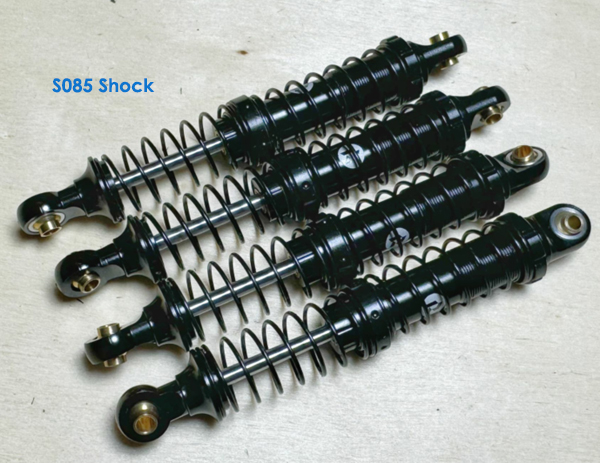

Rhino S085 Shock(recommended Front axles use 0.9mm sping, Rear axles use 0.8mm spring):

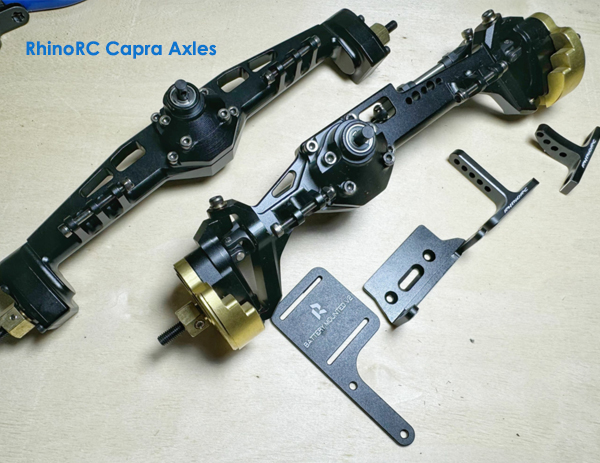

RhinoRC Capra axlex:

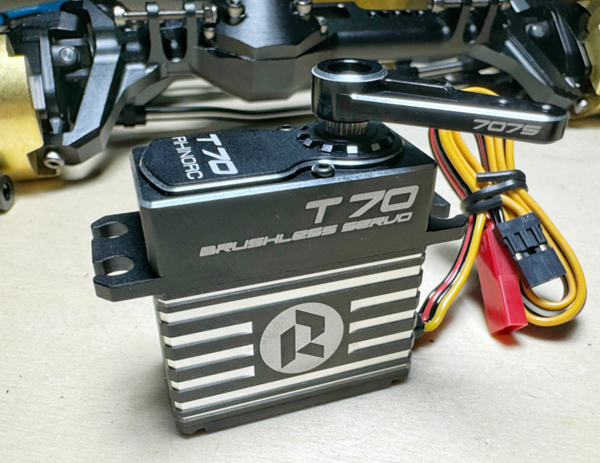

T70 7-17V driect power servo :

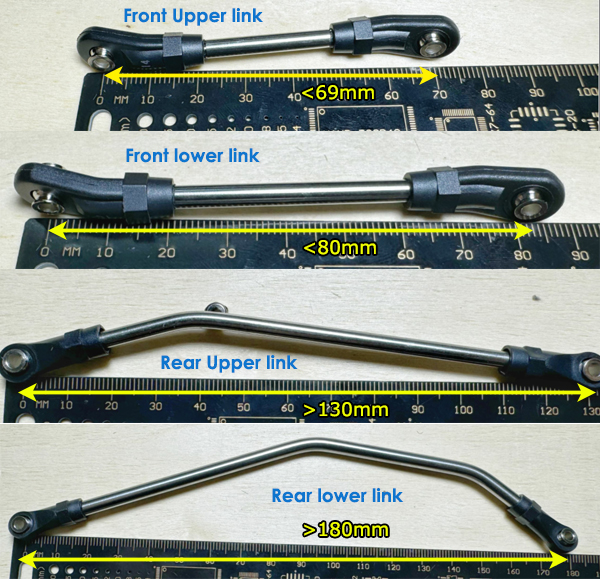

All links recommended length:

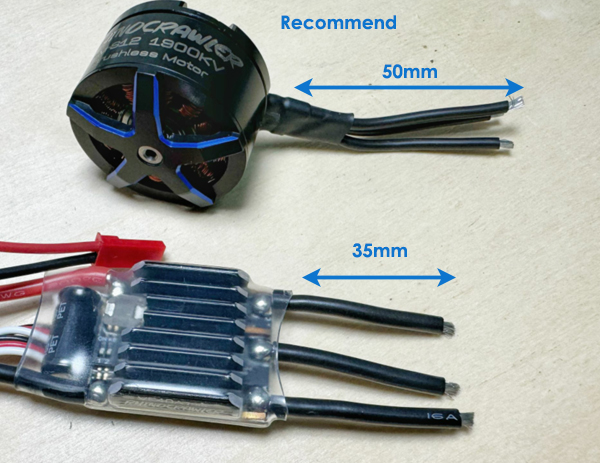

ESC and Motor wires length（recommended):

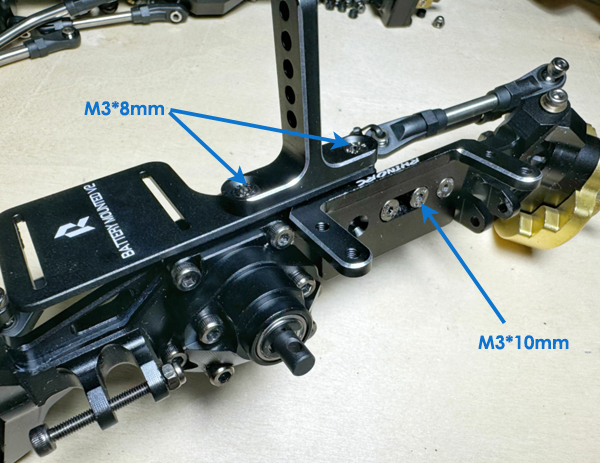

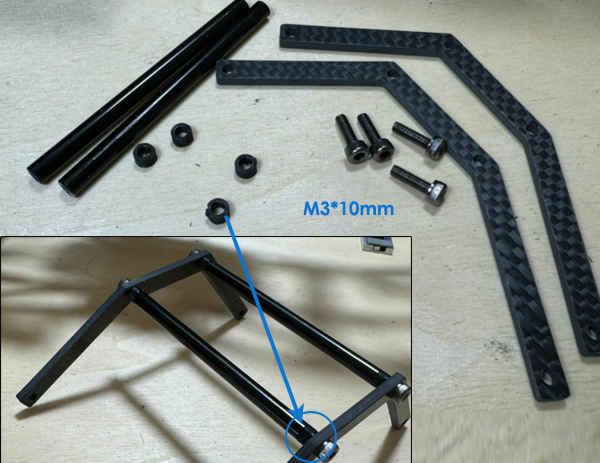

Assembled Servo mounted, battery mounted and front upper link:

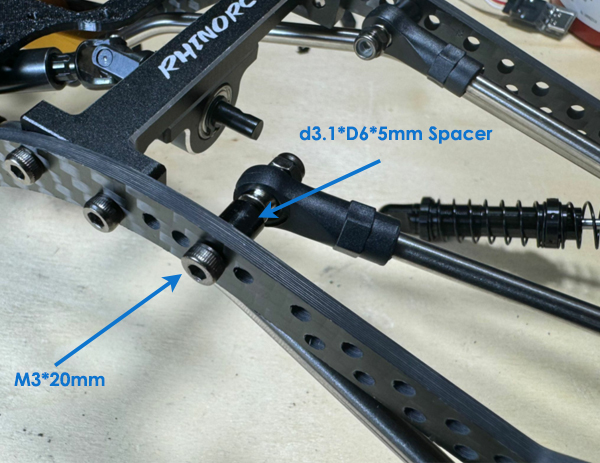

Assembled front lower links and front shock:
about the M3*0.1mm space guide please view here:
https://rctimer.com/blog/where-need-to-use-m3-spacer-in-the-yue-one-lcg-kit-b0018.html

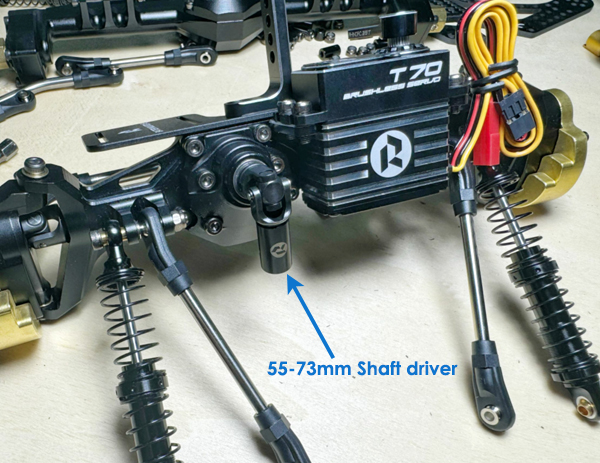

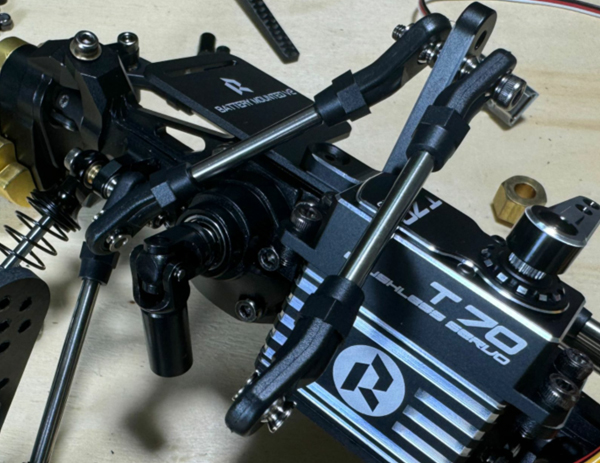

Assembled T70 Servo and 55-73mm shaft driver to Front Axles:

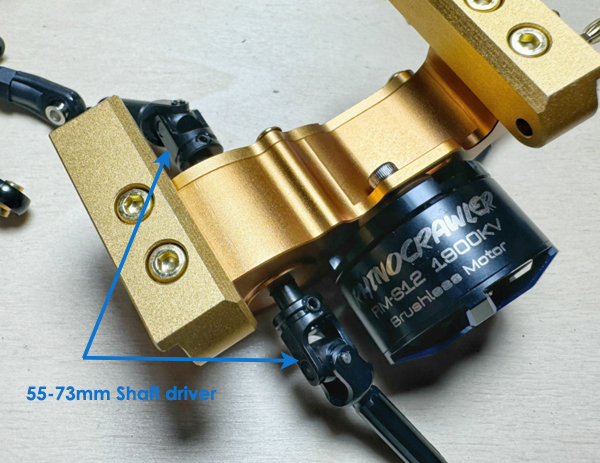

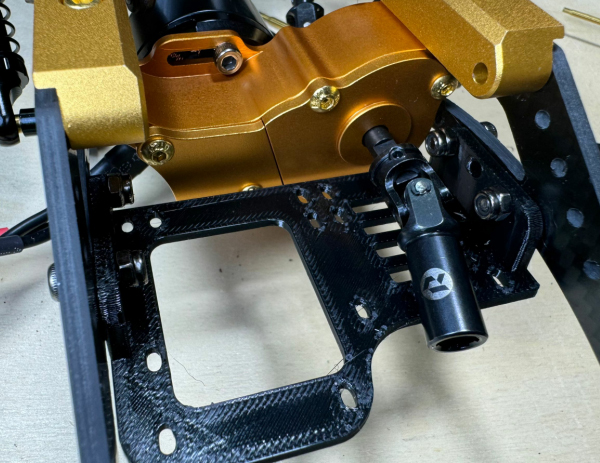

Assembled Motor and 55-73mm shaft driver to GearBox:

Assembled front upper links:

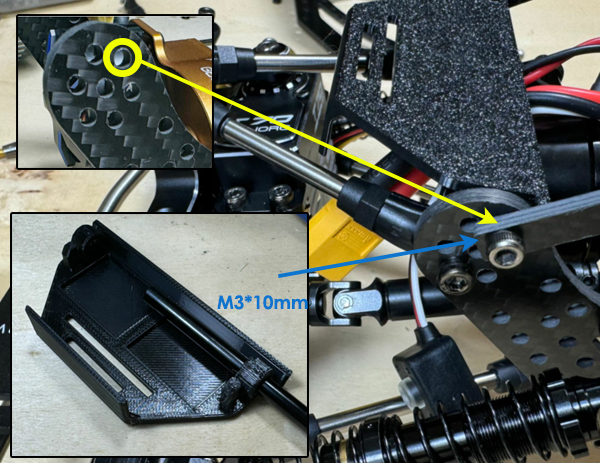

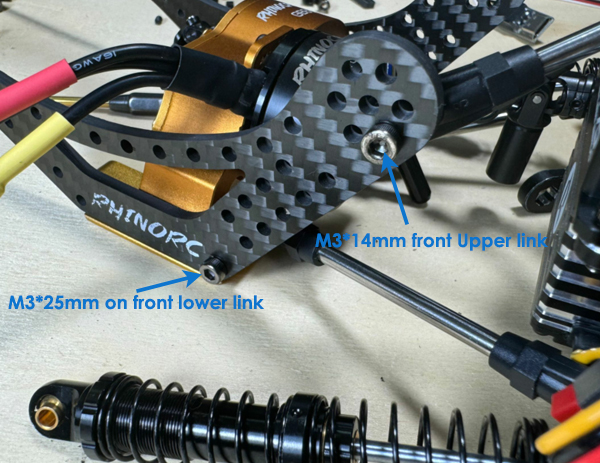

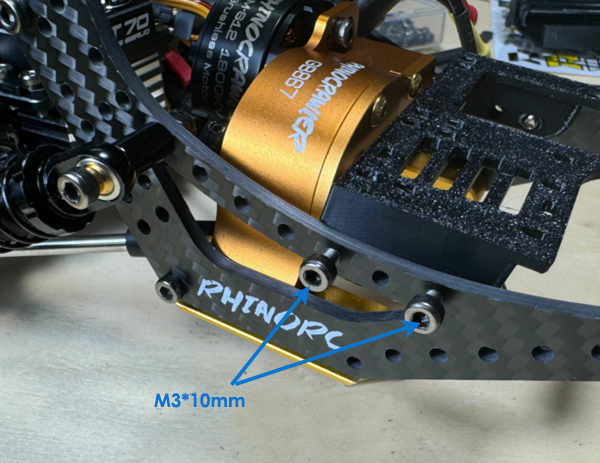

Assembled Gearbox and front upper link to W1 chassis:

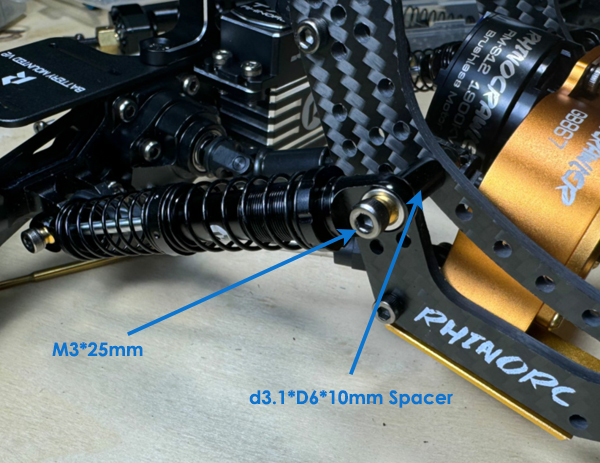

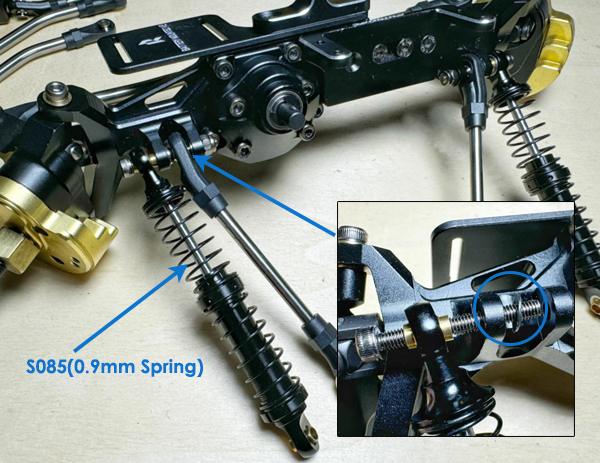

Assembled front shock to W1 chassis:

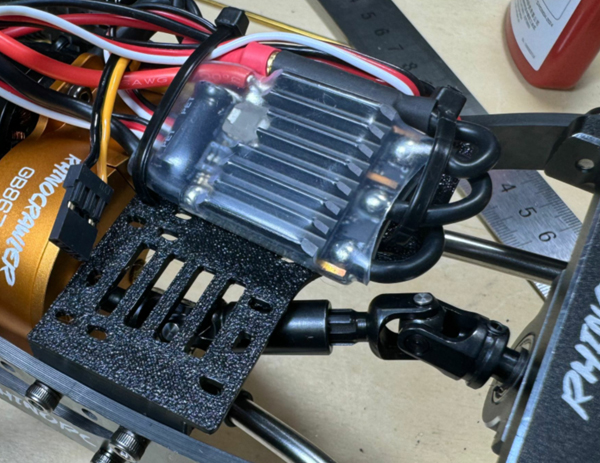

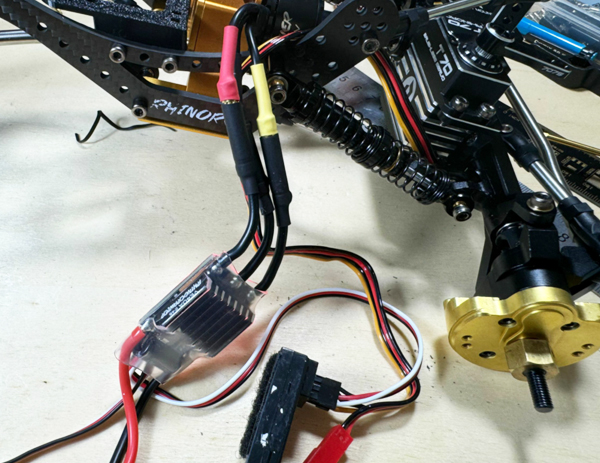

Assembled ESC, RX mounted to W1 chassis:

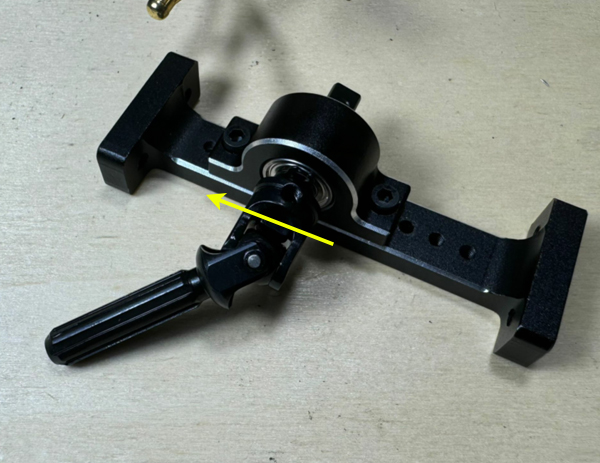

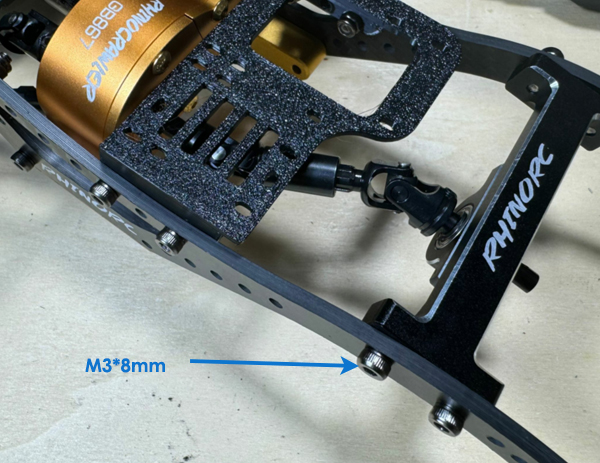

Assembled 55-73mm shaft driver to Carrier(Mounted to the second hole):

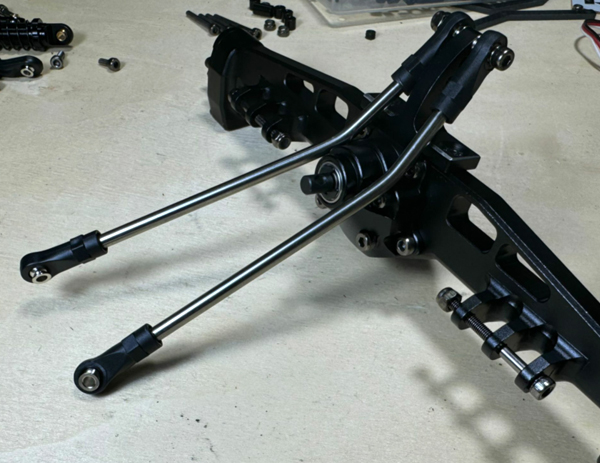

Assembled Rear upper link to Rear axles:

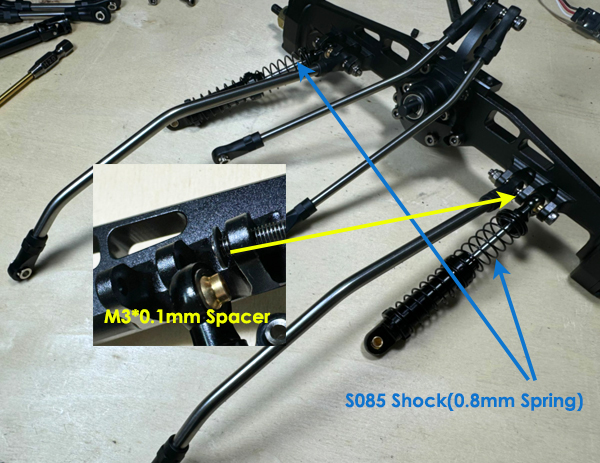

Assembled Rear lower link and shock(0.8mm spring) to Rear axles:

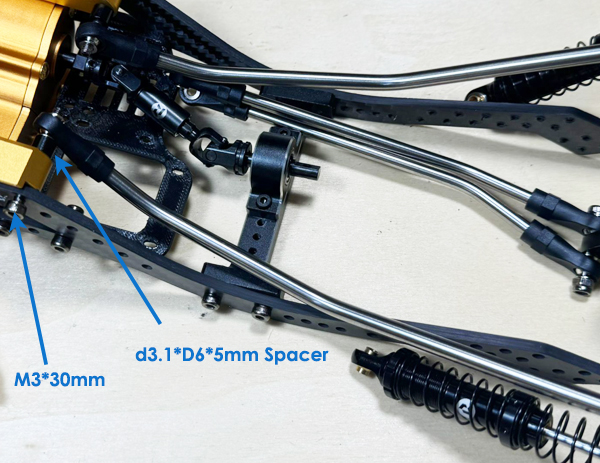

Assembled Rear lower link to chassis:

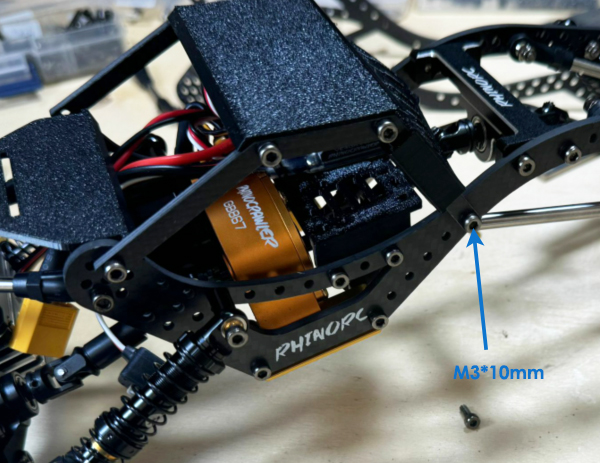

Assembled Rear upper link to chassis:

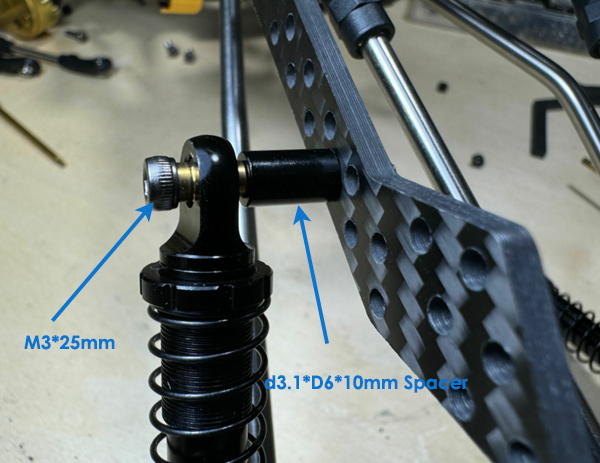

Assembled Rear shock to chassis:

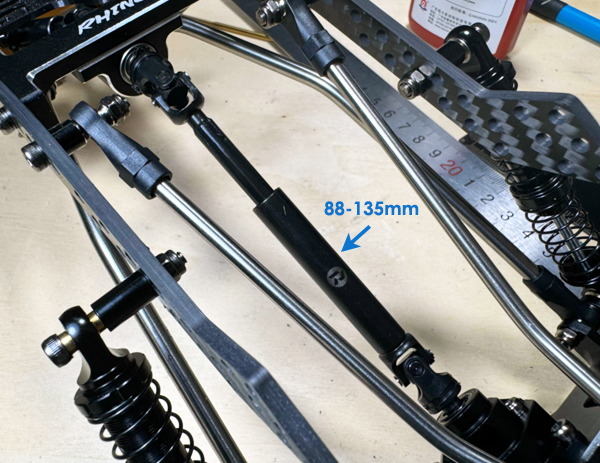

Assembled 88-135mm shaft driver:

Please test the direction of vehicle before mounted ESC:

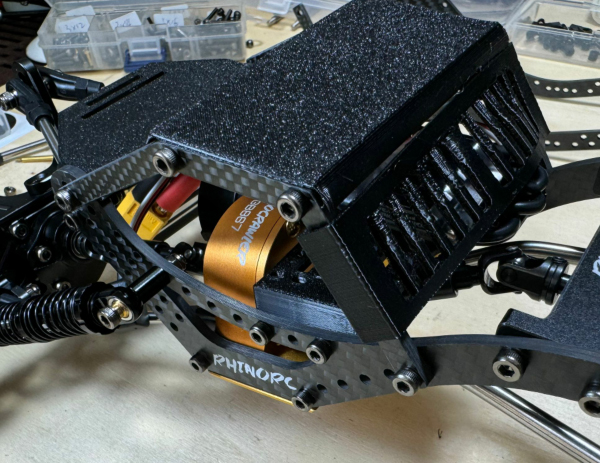

Carbon body mounted:

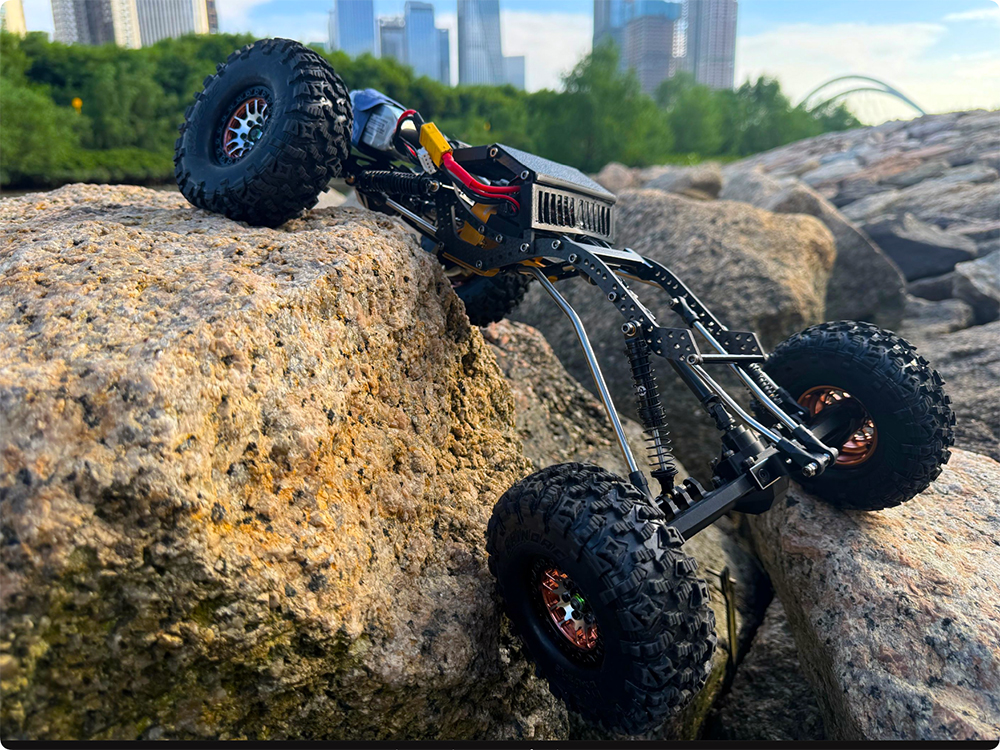

You have completed the installation of W1!
Thanks!
